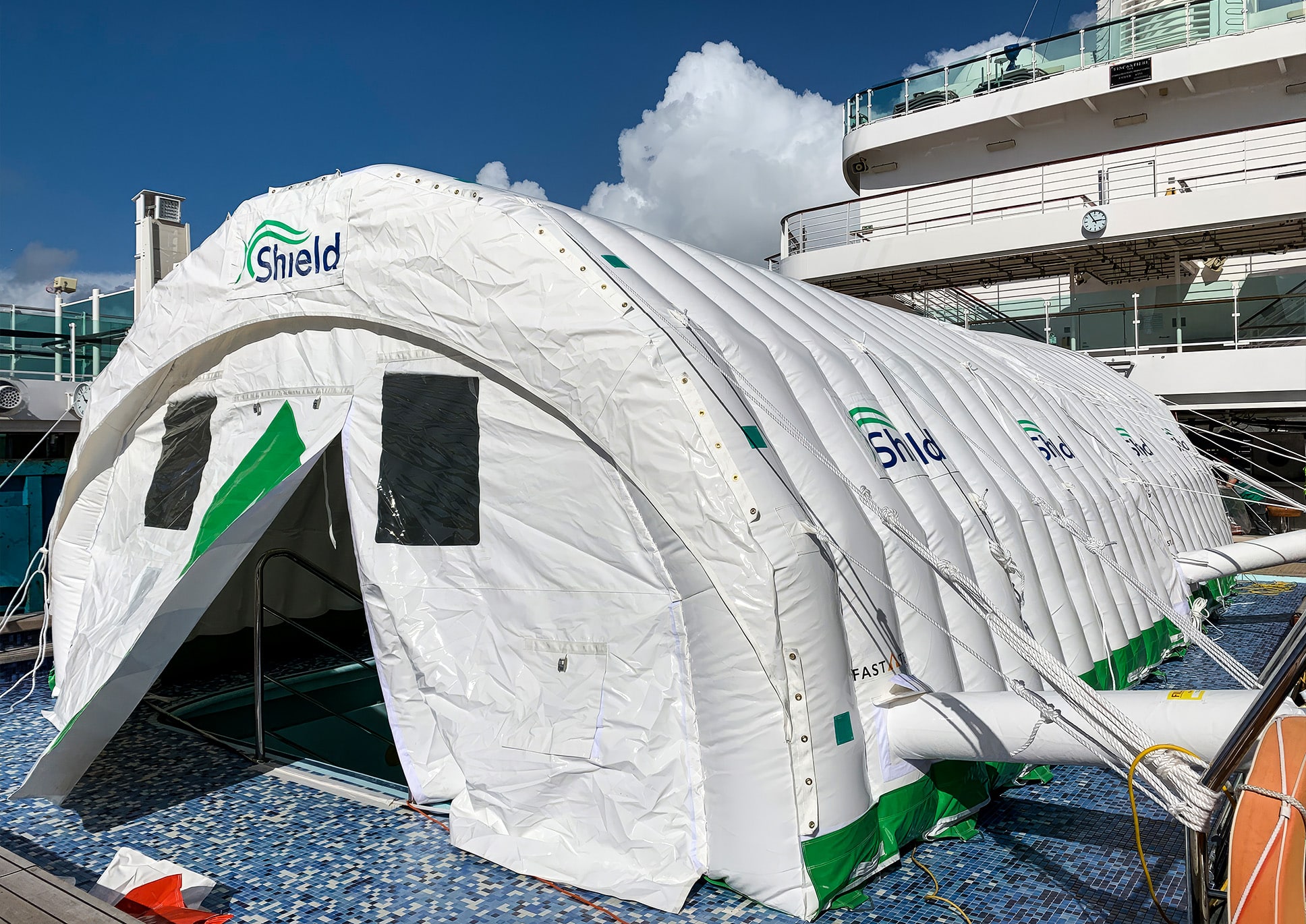

The 6 m (20’) wide CA-6 work tent is a designed for rapid deployment and is suitable for a wide range of applications in tough operational environments. With rapidly inflatable reinforced PVC ‘air beams’, the CA-6 Fast Tent shelter inflates in only 46 seconds.
Once inflated, the CA-6 Fast tent is 3.4 m (11’2′) high with an internal width of 5.1 m (16’9″).
Supplied as a 5 m (16’) long module which can be used as a ‘standalone’ building or joined together with other CA-6 buildings. (end walls are removable).
The CA-6 Fast Tent is highly portable. When it needs to be relocated, the air is allowed to escape, enabling the entire building to be packed down onto a small pallet or skid. Packed weight is approx. 220 kg (485 lbs). This means it is easy to pack, store and move your CA-6 Fast Tent from site to site.
Specifications
Dimensions

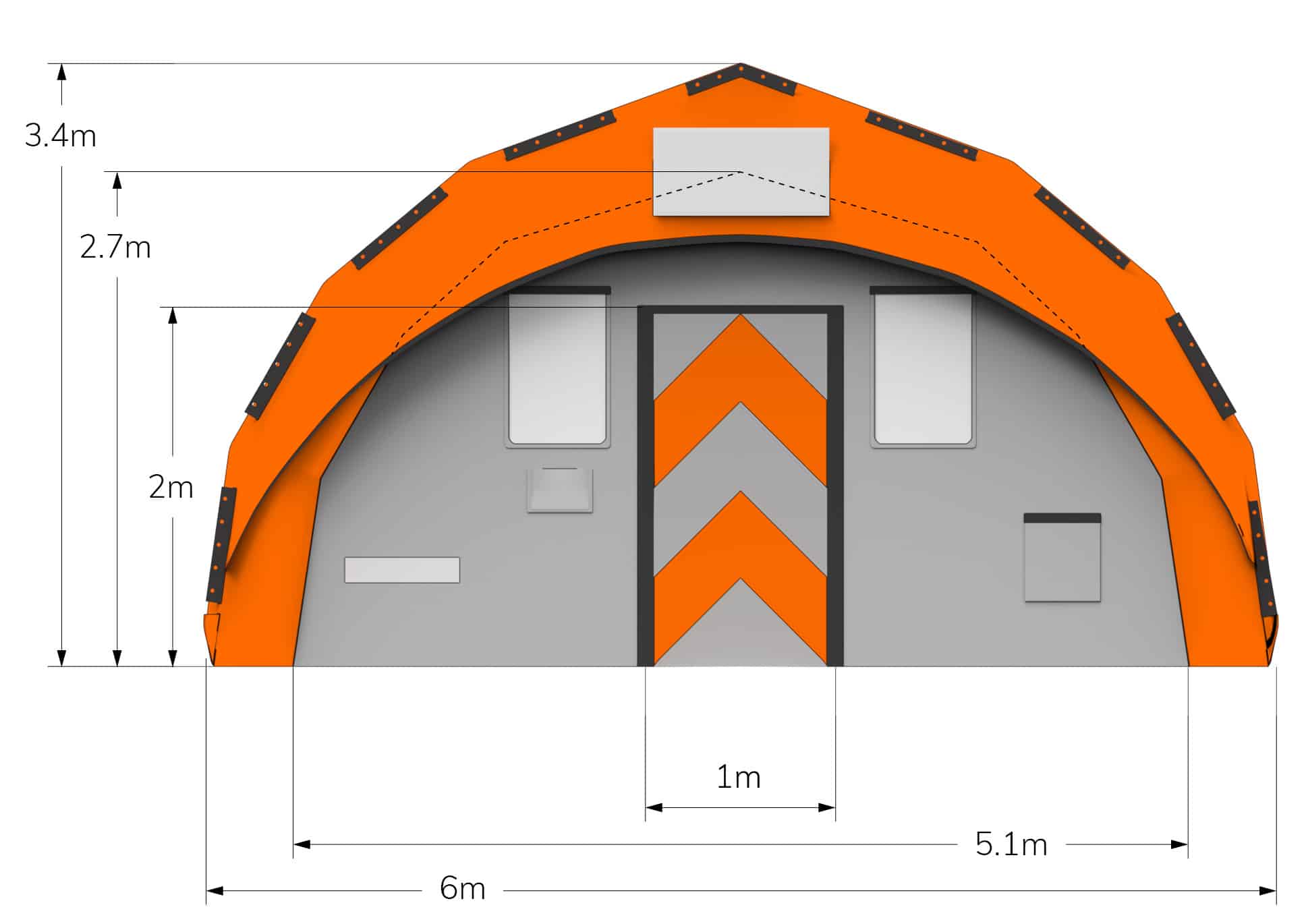

- Width, outside 6 m (19'8")
- Width, inside 5.1 m (16'9")

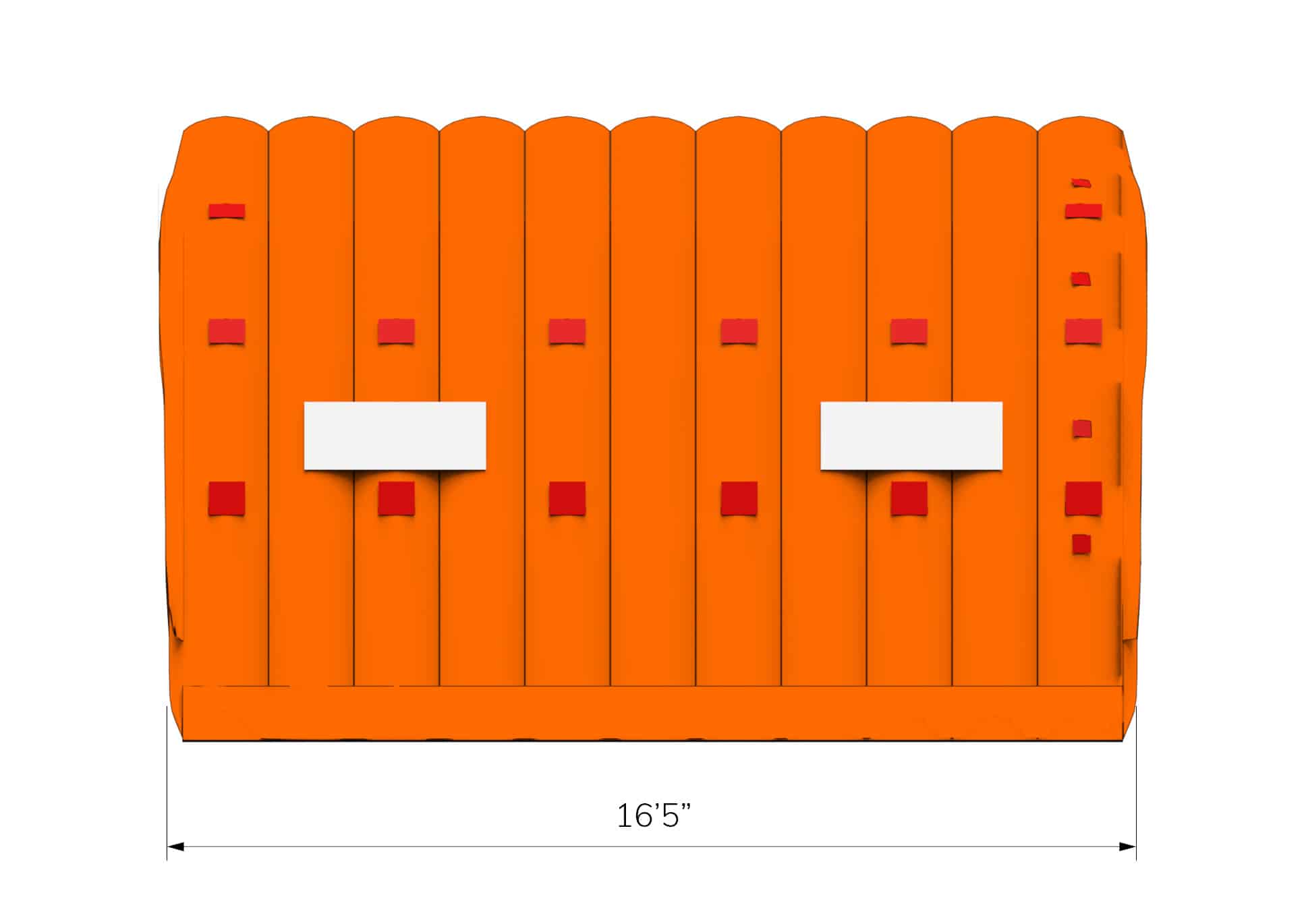

- Length 5 m (16'5")
- Height, outside 3.4 m (11’2″)
- Height, inside 2.7 m (8’10”)
- Packed Size 1.2 x 1 x 1 m (4′ x 3’3″ x 3’3″)
- Weight 185 kg (408 lbs) (tent only)
Construction
- Frame 45 cm (1'6") double wall + internal mesh air baffles
- Side Walls 630 gsm PVC (flame retardant)
- End Walls 2 x removable – 630 gsm PVC (flame retardant)
- Roof 630 gsm PVC peaked roof (flame retardant)
- Module Connection 9 x dutch lacing sections + rain cover
Standard Features
- Windows 2 x clear PVC – 60cm x 90cm (23″ x 35″) (each end wall)
- Access 2 x personnel door (each end wall)
- Fans 1 x 1.5 hp constant air (per module)
- Fill Points 2 x internal + 2 x external
- Deflation Zips 2 x 1m (3’3″) deflation zips
- Internal Ties 40 x webbing loops
- Document Pouch 1 x A4 clear external pouch (each end wall)
- Duct Holes 2 x 45 cm (1'6″) service duct holes with velcro flap (each end wall)
Anchors (Each side)
- High Level 4 x multi directional webbing – 150 kg (330 lbs) capacity
- Mid Level 4 x multi directional webbing – 150 kg (330 lbs) capacity
- Ground Level 6 x heavy duty metal ring – 150 kg (330 lbs) capacity
Anchors (Each end)
- High Level n/a
- Ground Level 4 x heavy duty, multi directional webbing – 150 kg (330 lbs) capacity
Standard Accessories
- Transport Bag 1 x PVC Transport Bag
- Repair Kit Included
- Stakes Reinforced steel, 18 mm (11/16”) diameter
- Ties 18 mm (3/4″) polypropylene rope
- Colours (Build to order) Choice of 14 colours
Branding / Logos
- Side Walls 2 x removeable digitally printed PVC banners – 100 cm L x 50 cm H (3’3″ x 1’6″) (each side wall)
- End Walls 2 x removeable digitally printed PVC banners – 100 cm long x 50 cm H (3’3″ x 1’6″) (each end wall)
- Note Specification and dimensions may be subject to change without notice
What's Included With Your
Constant Air Fast Tent
A Fast Tent is supplied as a 'turnkey' solution with everything you need to get going.
1m pegs
Anchoring Ropes
Fan(s)
Operational Manual
Repair Kit
Standard pegs
Transport & storage bag
Webbing ropesInflatable Work
Tent Installation
& Set Up
With no loose parts or components, Njordair inflatable buildings are simple and easy to use. Our on site set up & product familiarization service for new customers
provides total peace of mind. We’ve got your back.
Fast Tent Purchase Options
Standard design & orange / grey colour
scheme with Njordair branding.
Typical lead time 7 days.
Custom design, colour or branding.
Typical lead time 8-12 weeks.
