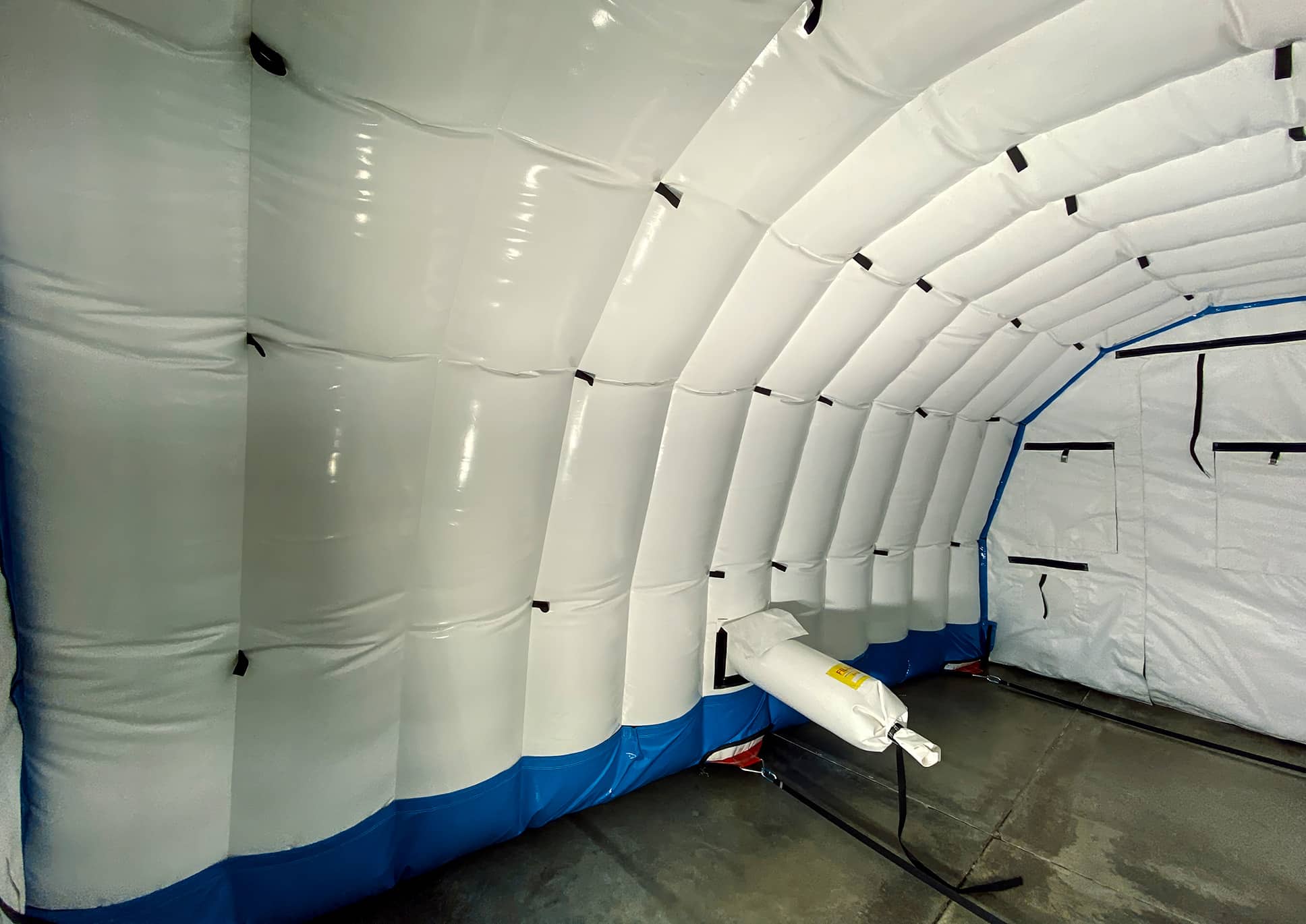

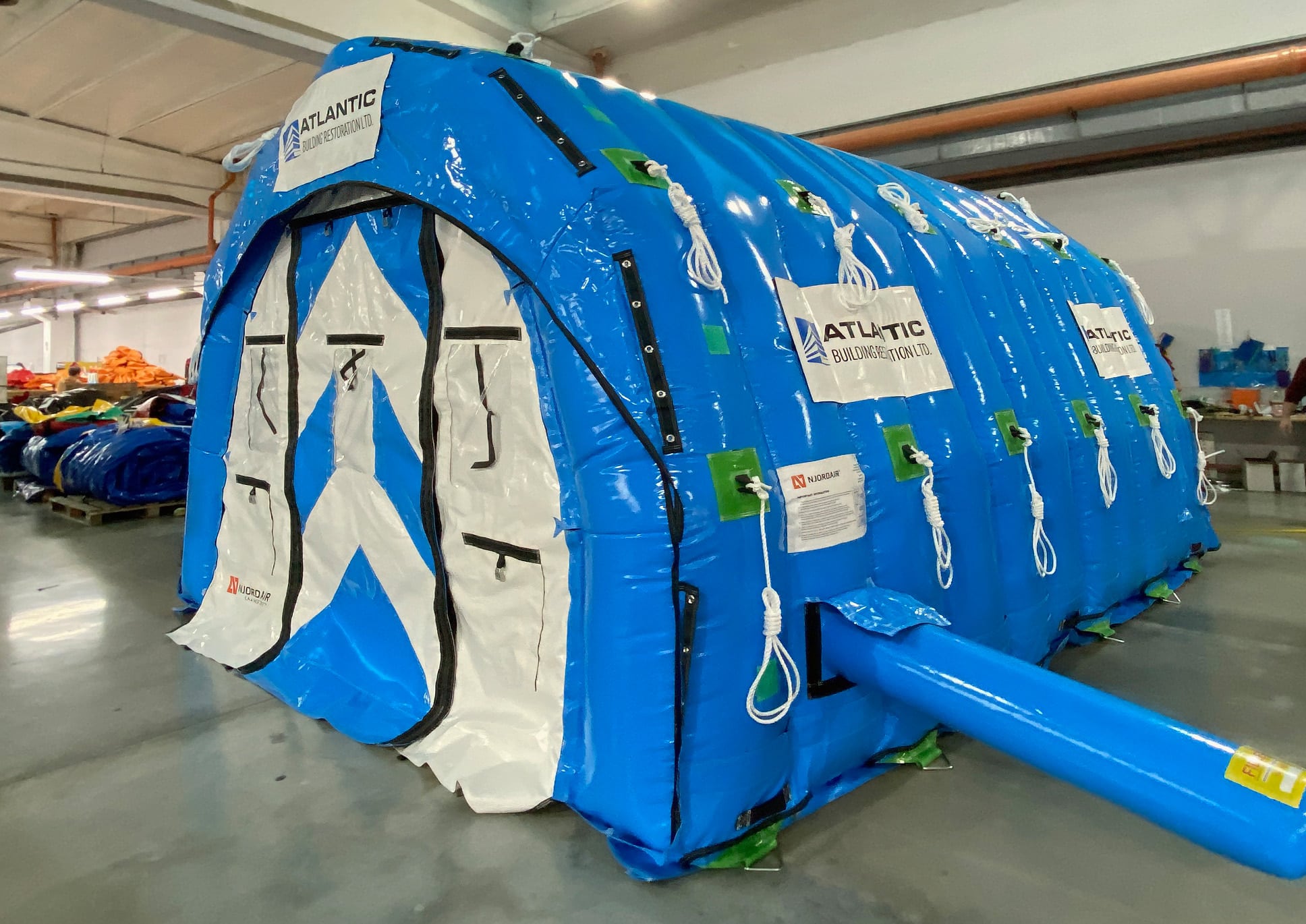

The CA-4 Fast Tent is a rapidly deployable inflatable work tent suitable for a wide range of applications in tough operational environments. Utilising reinforced PVC ‘air beams’, the CA-4 shelter self erects in under 46 seconds.

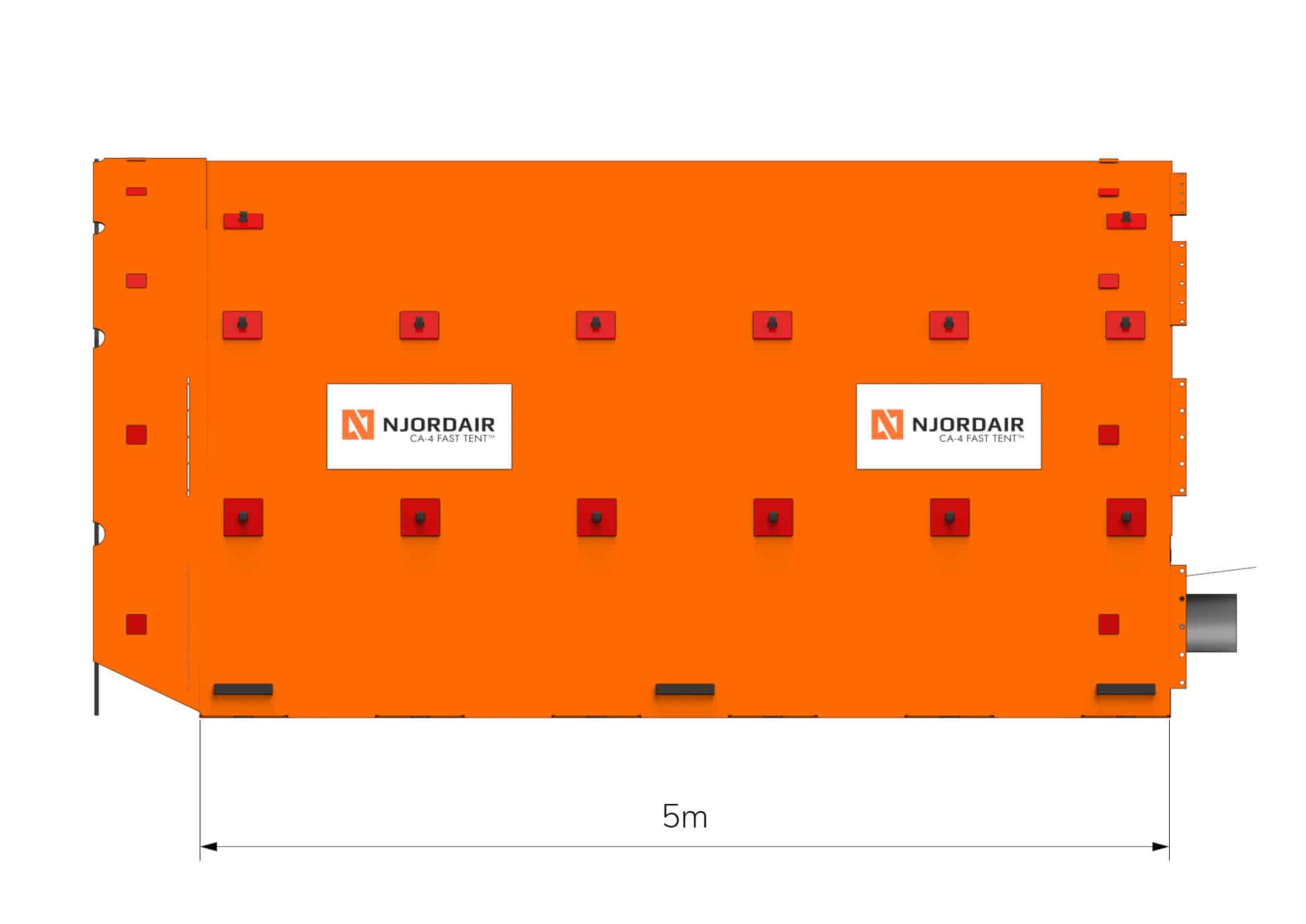

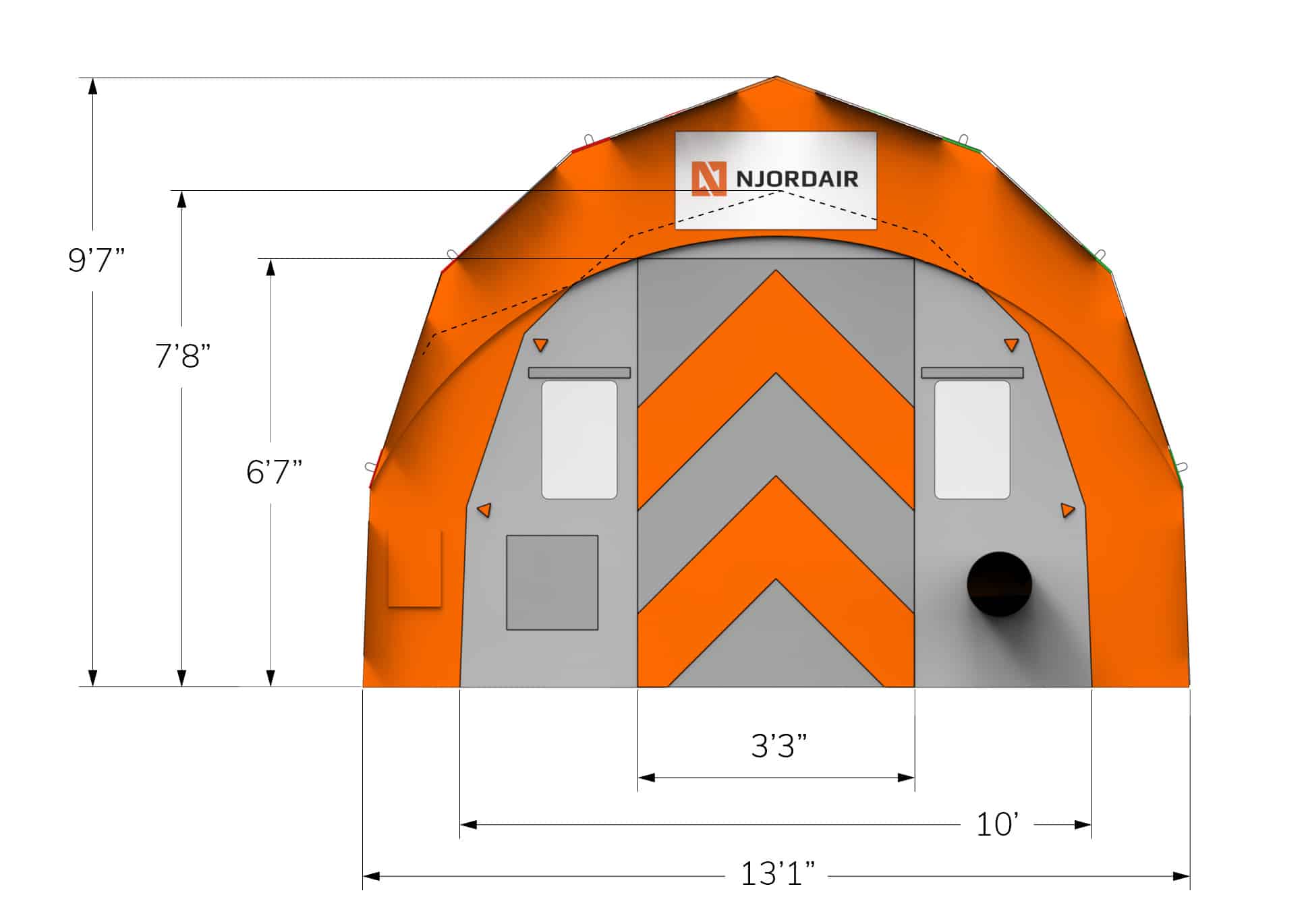

The CA-4 Fast tent inflates to create a 4 m (13’1″) wide and 2.93 m (9’7″) high building. Supplied as a 5 m (16’) long module, the CA-4 can be used as a ‘standalone’ structure or joined to other CA-4 Fast Tent modules (end walls are removable).
The CA-4 Fast Tent is easy to pack and move between locations. When the building needs to be relocated, the air is allowed to escape, enabling the entire structure to be folded into a compact package weighing around 155 kg (342 lbs).
Specifications
Dimensions
- Width, outside 4 m (13'1")
- Width, inside 3.05 m (10')
- Length 5 m (16'5")
- Height, outside 2.93 m (9'7")
- Height, inside 2.34 m (7’8”)
- Packed Size 1.2 x 1 x 1 m (4′ x 3’3″ x 3’3″)
- Weight 155 kg (342 lbs) (tent only)
Construction
- Frame 45 cm (1’6’) double wall + internal mesh air baffles
- Side Walls 630 gsm PVC (flame retardant)
- End Walls 2 x removable – 630 gsm PVC (flame retardant)
- Roof 630 gsm PVC (flame retardant)
- Module Connection 9 x dutch lacing sections + rain cover
Standard Features
- Windows 2 x clear PVC - 60 cm x 90 cm (23″ x 35″) (each end wall)
- Access 2 x personnel door (each end wall)
- Fans 1 x 1.5 hp constant air (per module)
- Fill Points 2 x internal + 2 x external
- Deflation Zips 2 x 1 m (3’3″) deflation zips
- Internal Ties 40 x webbing loops
- Document Pouch 1 x A4 clear external pouch (each end wall)
- Duct Holes 2 x 45 cm (1'6") with velcro flap (each end wall)
Anchors (Each side)
- High Level 8 x multi directional webbing, 150 kg (330 lbs) capacity
- Mid Level 6 x multi directional webbing, 150 kg (330 lbs) capacity
- Ground Level 6 x heavy duty metal ring, 150 kg (330 lbs) capacity
Anchors (Each end)
- High Level n/a
- Ground Level 4 x multi directional webbing, 150 kg (330 lbs) capacity
Standard Accessories
- Transport Bag 1 x PVC transport bag
- Repair Kit Included
- Stakes Reinforced steel, 18 mm (11/16”) diameter
- Ties 10 mm (3/8″) polypropylene rope
- Colours (Build to order) Choice of 14 colours
Branding / Logos
- Side Walls 2 x removable printed PVC banners - 97 cm L x 47 cm H (3’2” x 1’6”) (each side wall)
- End Walls 1 x removable printed PVC banner - 97 cm L x 47 cm H (3’2” x 1’6”) (each end wall)
- Note Specifications and dimensions may be subject to change without notice
What's Included With Your
Constant Air Fast Tent
A Fast Tent is supplied as a 'turnkey' solution with everything you need to get going.

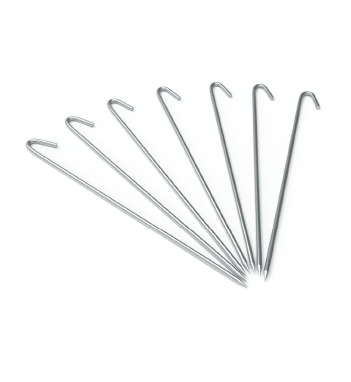

1m pegs

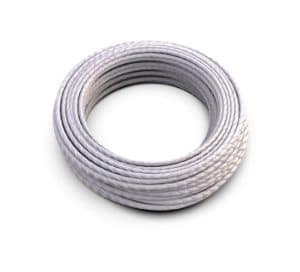

Anchoring Ropes

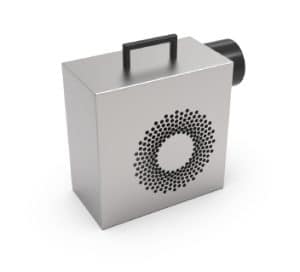

Fan(s)
Operational Manual

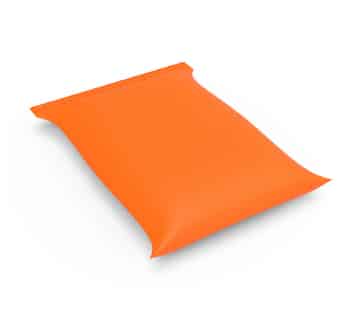

Repair Kit
Standard pegs

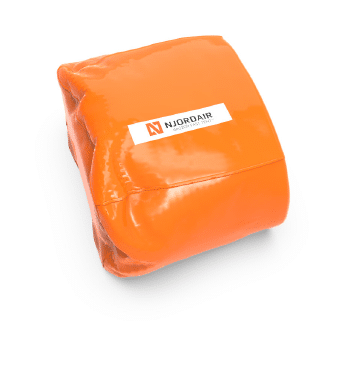

Transport & storage bag

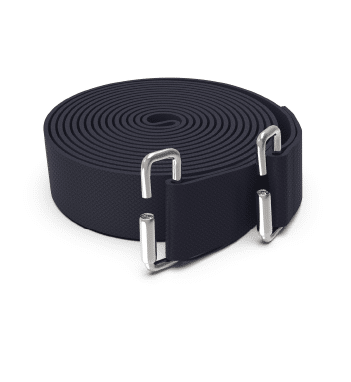

Webbing ropesInflatable Work

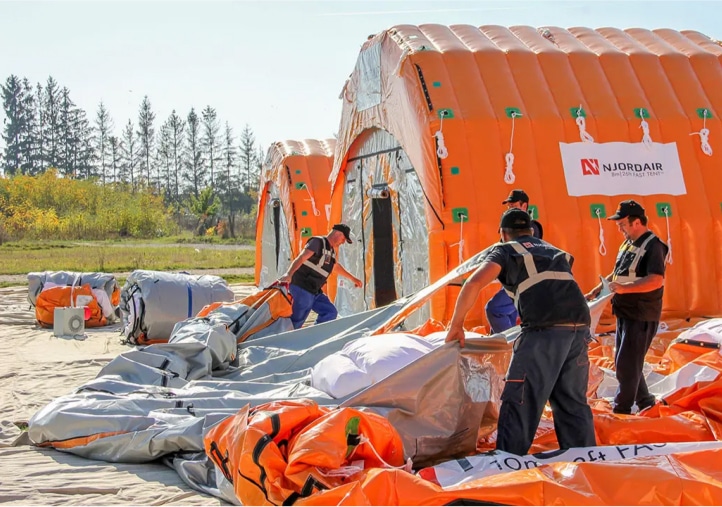

Tent Installation
& Set Up
With no loose parts or components, Njordair inflatable buildings are simple and easy to use. Our on site set up & product familiarization service for new customers
provides total peace of mind. We’ve got your back.
Fast Tent Purchase Options

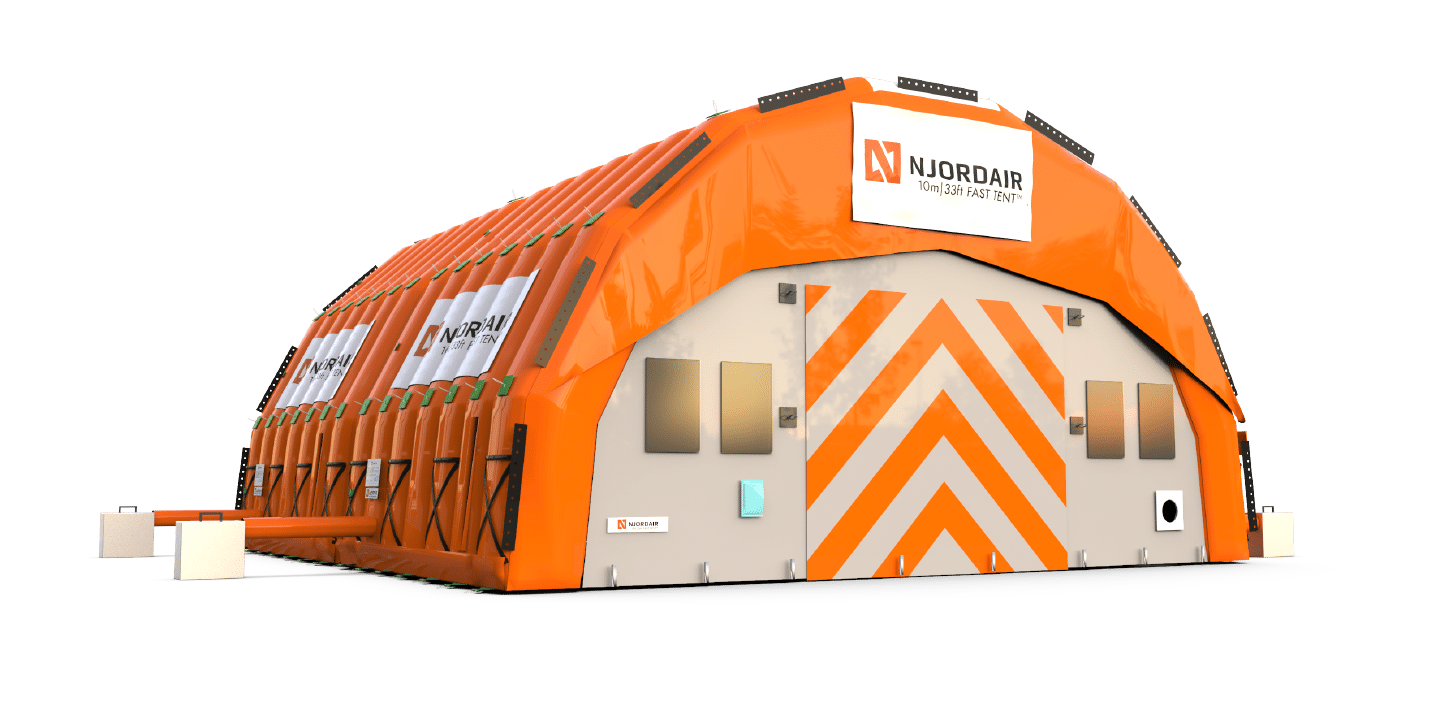

Standard design & orange / grey colour
scheme with Njordair branding.
Typical lead time 7 days.
Custom design, colour or branding.
Typical lead time 8-12 weeks.
