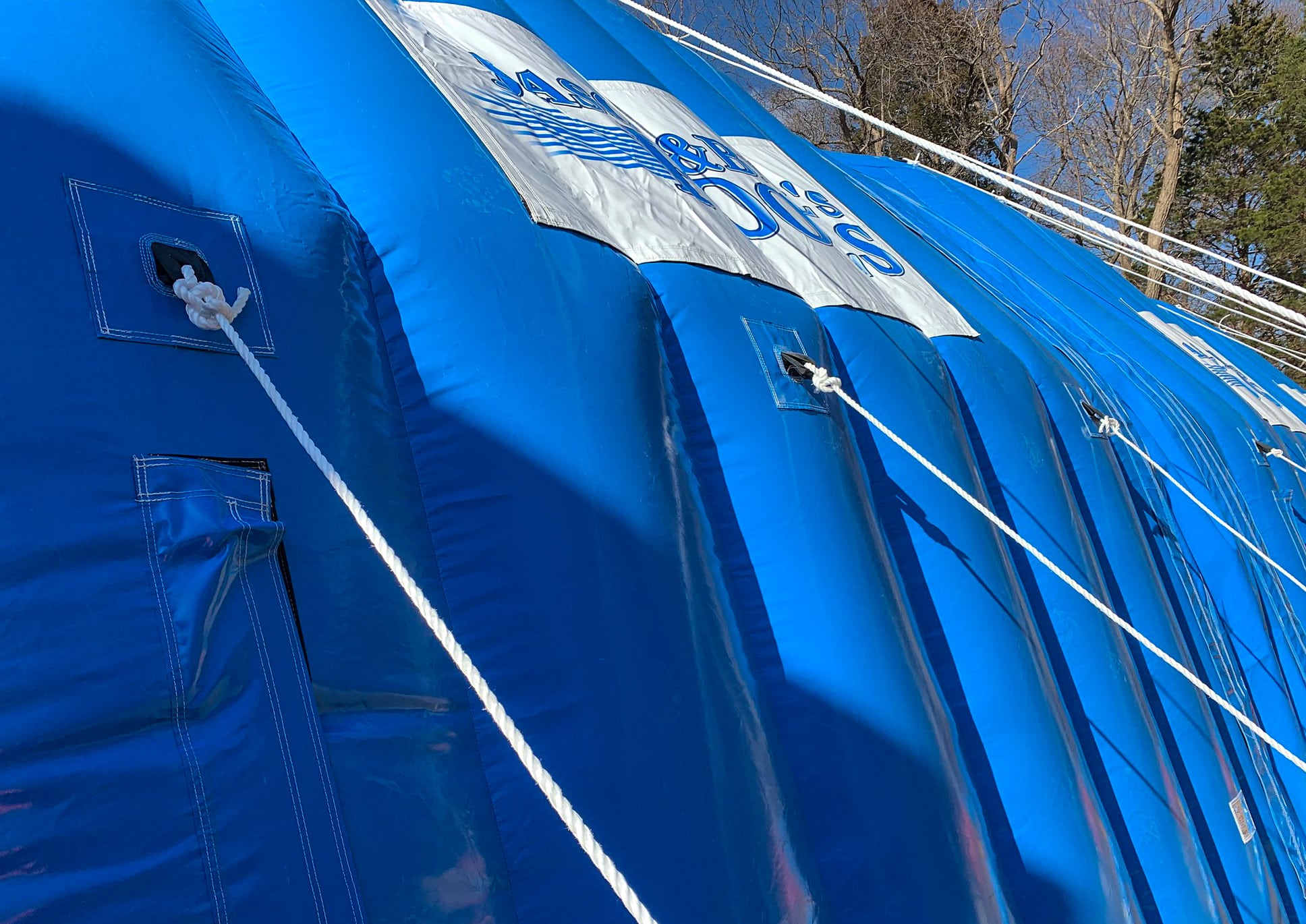

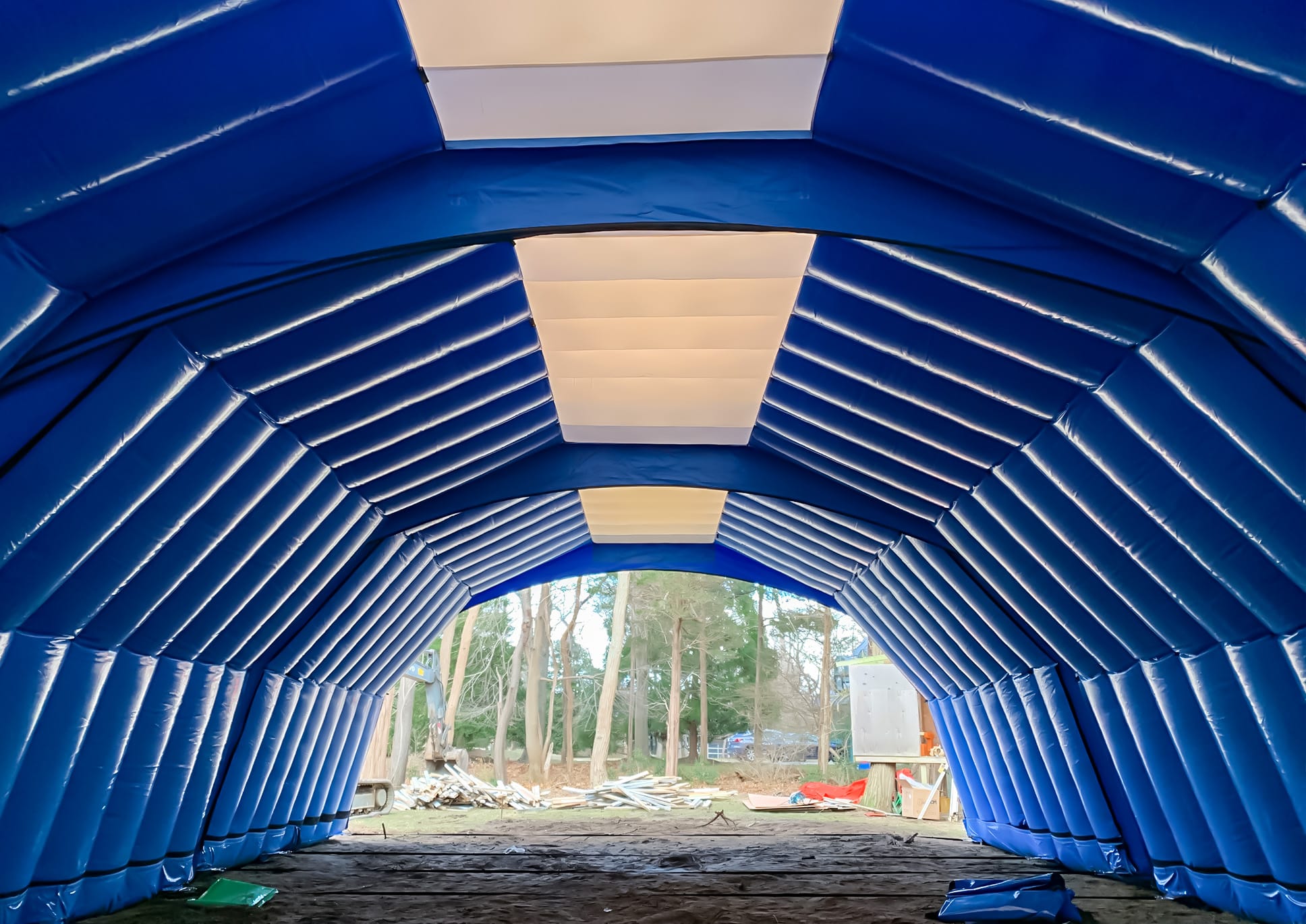

The CA-12 work tent is a self erecting, heavy duty inflatable shelter system designed for rapid deployment and relocation.
Using Fast Tent prevents weather-related downtime and keeps your crews safe & productive year round.
The 12 m (40’) wide Fast Tent (constant air) work tent is a rapid deployment air building suitable for a wide range of applications in tough operational environments and is a popular choice with the construction industry. With rapidly inflatable reinforced PVC ‘air beams’, our 12m (33ft) wide ‘Fast Tent’ inflates in just 3 minutes 15 seconds.
Supplied as a 5 m (16’) long module. Use the CA-12 work tent as a ‘standalone’ building or join multiple modules together (end walls are removable).
Need a different size? We have Fast Tents from 6 m (20’) to 14 m (46’) wide in our CA range.
Specifications
Dimensions
- Width, outside 12 m (39′4")
- Width, inside 10.3 m (33′10")

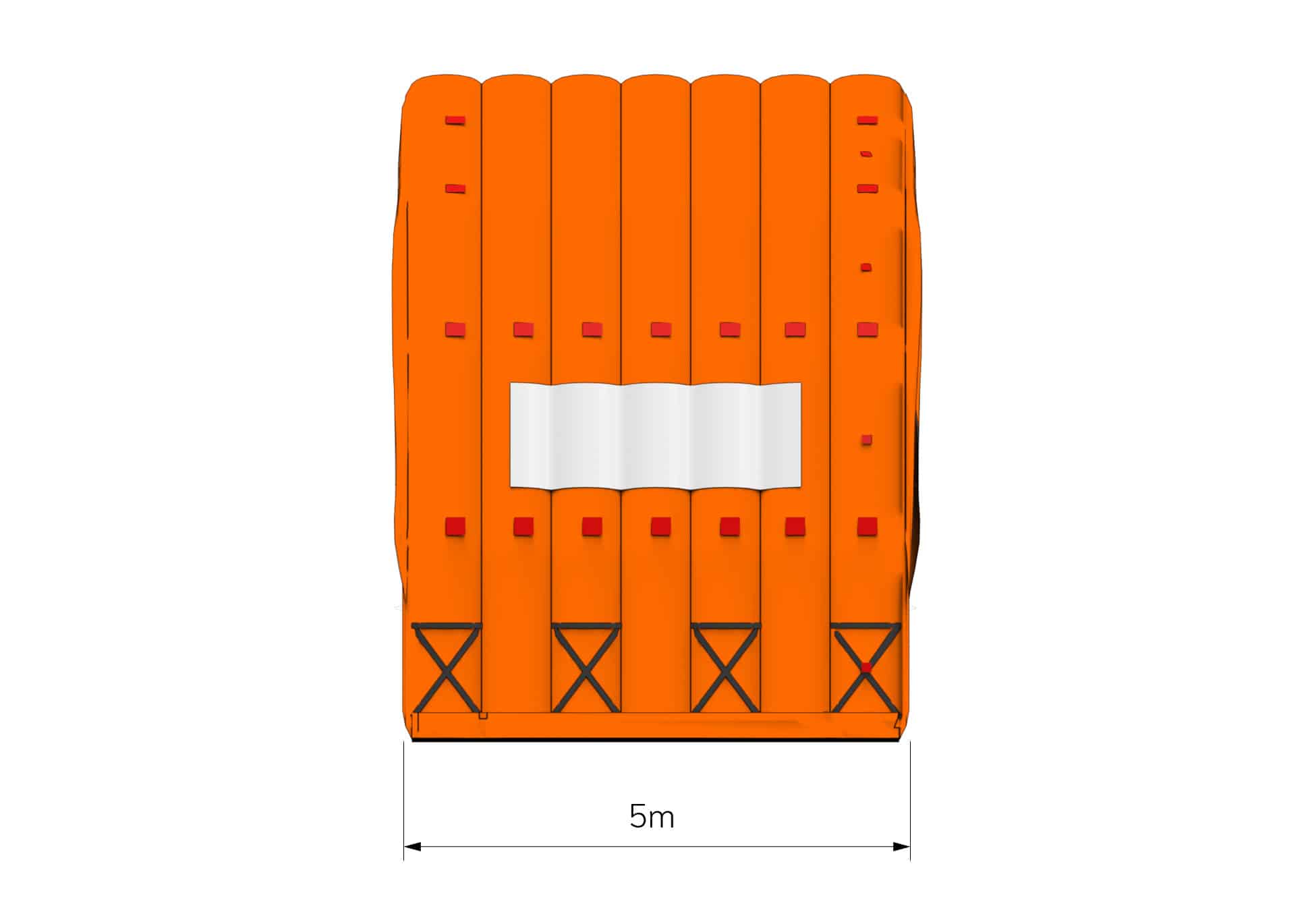

- Length 5 m (16′5")
- Height, outside 6.6 m (21′8")
- Height, inside 5.4 m (17′9")
- Packed Size 1.8 x 1.2 x 1.2 m (6′ x 4′ x 4′)
- Weight 330 kg (727 lbs) (tent only)
Construction
- Frame 85 cm (2’9") double wall + internal mesh air baffles
- Side Walls 630 gsm PVC (flame retardant)
- End Walls 2 x removable – 630 gsm PVC (flame retardant)
- Roof 630 gsm PVC peaked roof (flame retardant)
- Module Connection 9 x dutch lacing sections + rain cover
Standard Features
- Windows 4 x clear PVC windows – 60 cm x 90 cm (23″ x 35″) (each end wall)
- Access 2 x pedestrian door + 2 x machinery door
- Fans 2 x 1.5 hp constant air (per module)
- Fill Points 2 x internal + 2 x external
- Deflation Zips 2 x 1 m (3’3″) deflation zips
- Internal Ties 40 x webbing loops
- Document Pouch 1 x A4 clear external pouch (each end wall)
- Duct Holes 2 x 45 cm (1'6") service duct holes with velcro flap (each end wall)
Anchors (Each side)
- High Level 11 x multi directional webbing – 150 kg (330 lbs) capacity
- Mid Level 7 x multi directional webbing – 150 kg (330 lbs) capacity
- Ground Level 7 x heavy duty metal ring – 150 kg (330 lbs) capacity
Anchors (Each end)
- High Level 6 x multi directional webbing – 150 kg (330 lbs) capacity
- Ground Level 8 x multi directional webbing – 150Kg (330lbs) capacity
Standard Accessories
- Transport Bag 1 x PVC transport bag
- Repair Kit Included
- Stakes Reinforced steel, 18 mm (11/16”) diameter
- Ties 10 mm (3/8″) polypropylene rope
- Colours (Build to order) Choice of 14 colours
Branding / Logos
- Side Walls 1 x removable digitally printed PVC banners – 300 cm L x 150 cm H (9’10” x 4’11”) (each side wall)
- End Walls 1 x removable digitally printed PVC banners – 300 cm long x 150 cm H (9’10” x 4’11”) (each end wall)
- Note Specification and dimensions may be subject to change without notice
What's Included With Your
Constant Air Fast Tent
A Fast Tent is supplied as a 'turnkey' solution with everything you need to get going.
1m pegs
Anchoring Ropes
Fan(s)
Operational Manual
Repair Kit
Standard pegs
Transport & storage bag
Webbing ropesInflatable Work
Tent Installation
& Set Up
With no loose parts or components, Njordair inflatable buildings are simple and easy to use. Our on site set up & product familiarization service for new customers
provides total peace of mind. We’ve got your back.
Fast Tent Purchase Options
Standard design & orange / grey colour
scheme with Njordair branding.
Typical lead time 7 days.
Custom design, colour or branding.
Typical lead time 8-12 weeks.
