The SA-6 Fast Tent (sealed air) work tent is a rapid deployment air building suitable for a wide range of applications in tough operational environments and a popular choice with the military and emergency services.
Supplied as a 5m (16’) long module. Use it as a ‘standalone’ building or join multiple modules together (end walls are removable).
Sealed air Fast Tents are constructed from an inflatable framework with a single skin cover. The fire retardant coated PVC fabric is welded together using hot air or high frequency welding techniques which produces an air tight seam. This means it does not require constant inflation.
Buy from stock in our signature orange & grey colour scheme or ‘build your own’ and choose from 18 colours and customised external branding
Need something larger? We have Fast Tents up to 12 m (40’) wide in our SA Range.
Specifications
Dimensions

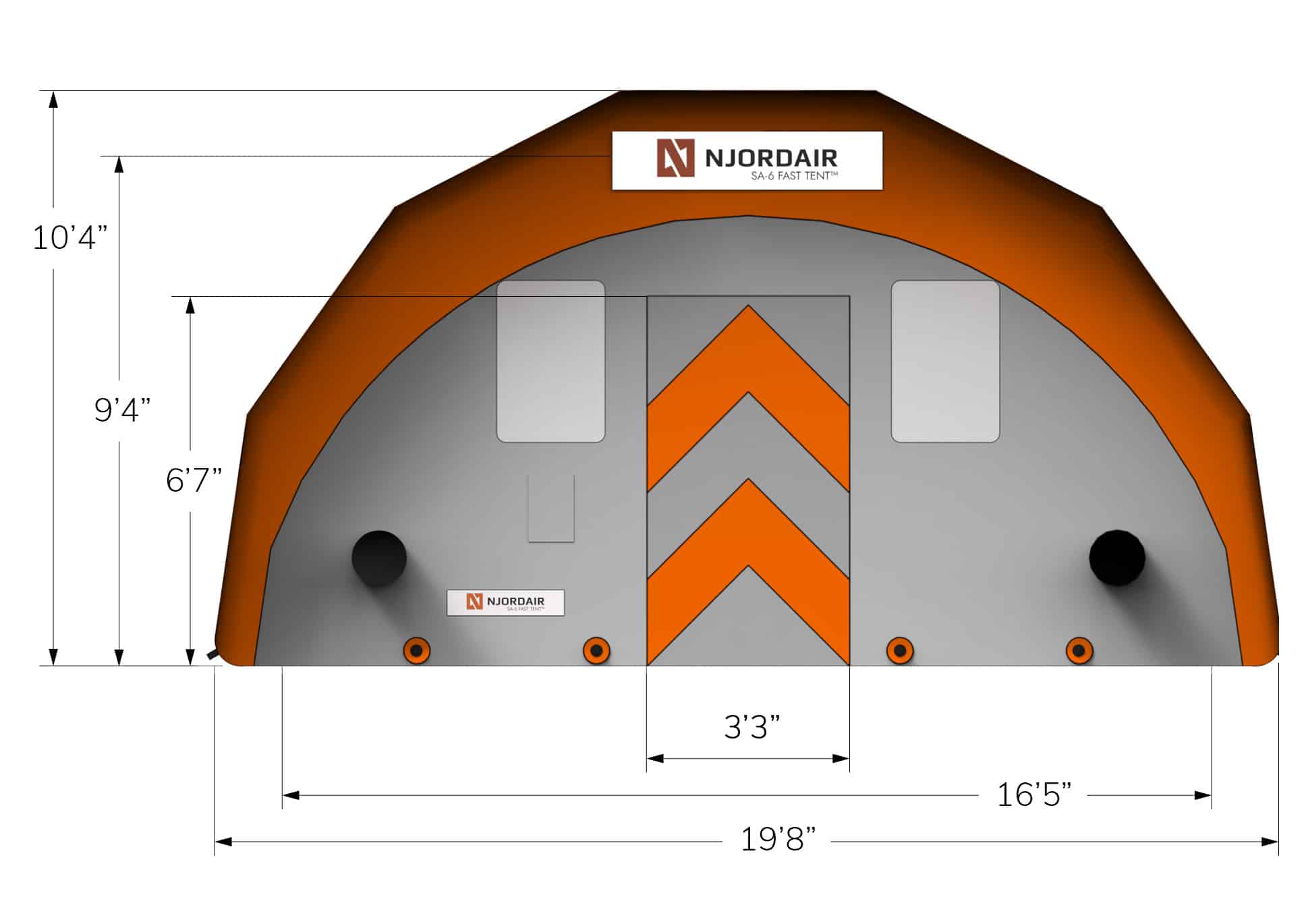

- Width, outside 6 m (19′8")
- Width, inside 5.4 m (17′9")

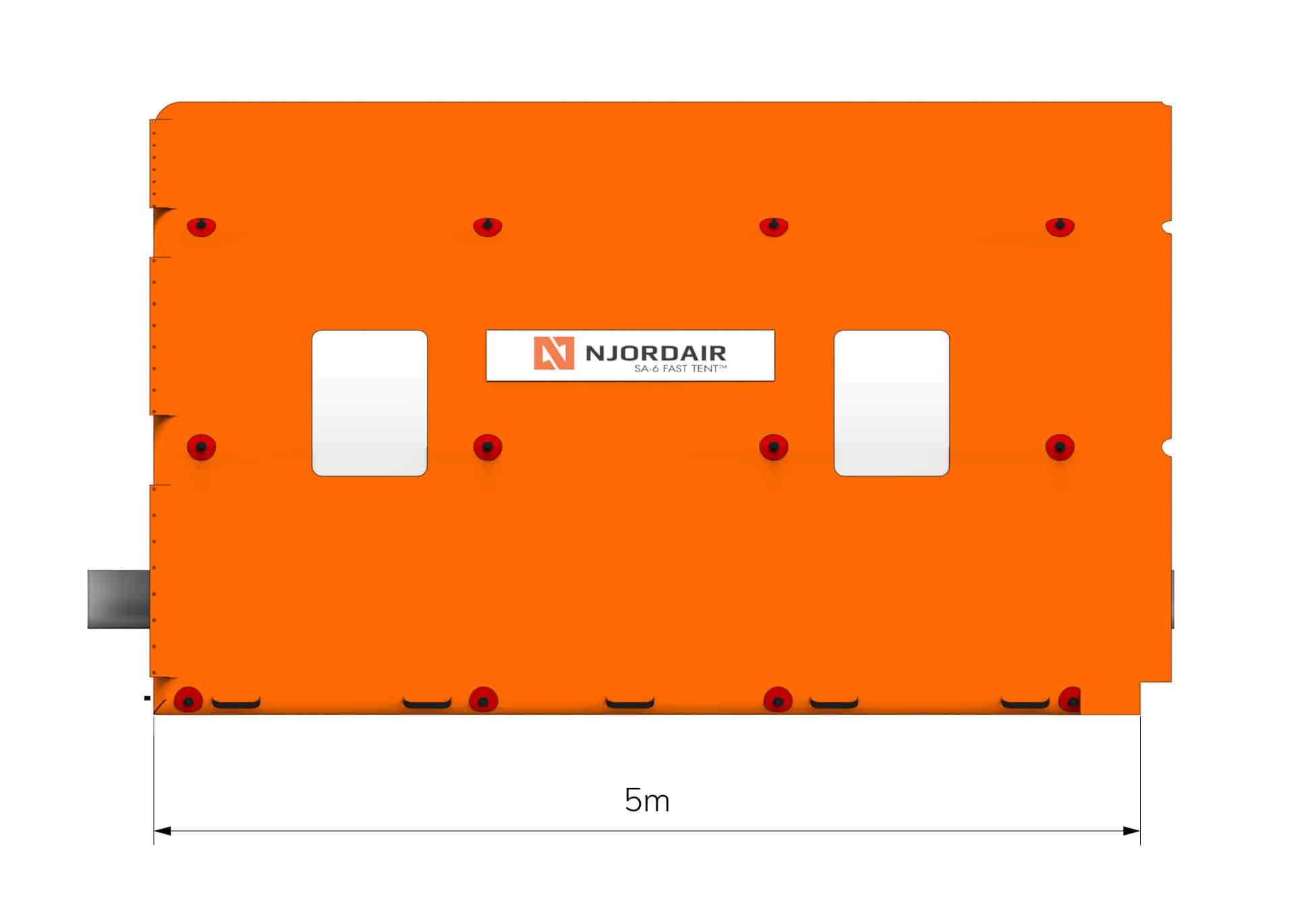

- Length 5m (16′)
- Height, outside 3.45 m (10’4”)
- Height, inside 2.85m (9'4")
- Packed Size 1.2m x 1.2m x 0.9m (4′ x 4′ x 3′)
- Weight 178 kg (392 lbs)
Construction
- Frame Plato 1140gsm PVC (FR) 48 cm (1'7") diameter
- Side Walls 630gsm PVC (flame retardant)
- End Walls 2 x removable – 630gsm PVC (flame retardant)
- Roof 630gsm PVC peaked roof (flame retardant)
- Module Connection 7 x dutch lacing sections + rain cover
Standard Features
- Windows 2 x clear PVC – 60cm x 90cm (23″ x 35″)
- Access 1 x pedestrian door (each end wall)
- Fans 1 x sealed air fan with automatic pressure control (per module)
- Fill Points 3 x fill points with pressure release
- Deflation Zips n/a
- Internal Ties 74 x webbing loops + 44 x Metal ‘D’ rings
- Document Pouch 1 x A4 clear external pouch (each end wall)
- Duct Holes 2 x 45 cm (1'6") service duct holes with velcro flap (each end wall)
Anchors (Each side)
- High Level 4 x multi directional webbing – 150 kg (330 lbs) capacity
- Mid Level 4 x multi directional webbing – 150 kg (330 lbs) capacity
- Ground Level 4 x multi directional webbing – 150Kg (330lbs) capacity
Anchors (Each end)
- High Level n/a
- Ground Level 4 x multi directional webbing – 150 kg (330 lbs) capacity
Standard Accessories
- Transport Bag 1 x PVC transport bag
- Repair Kit Included
- Stakes Reinforced steel, 18 mm (11/16”) diameter
- Ties 10 mm (3/8″) polypropylene rope
- Colours (Build to order) Choice of 12 colours
Branding / Logos
- Side Walls 1 x removable digitally printed PVC banners – 200cm L x 45cm H (6′ 6″ x 1′ 6″) (each side wall)
- End Walls 1 x removable digitally printed PVC banners – 100cm L x 45cm H (3′ 3″ x 1′ 6″) (each end wall)
- Note Specification and dimensions may be subject to change without notice.
What's Included With Your
Sealed Air Fast Tent
A Sealed Air Tent is supplied as a 'turnkey' solution with everything you need to get going.
1m pegs
Anchoring Ropes
Fan(s)
Operational Manual
Repair Kit
Standard pegs
Transport & storage bag
Webbing ropesInflatable Work
Tent Installation
& Set Up
With no loose parts or components, Njordair inflatable buildings are simple and easy to use. Our on site set up & product familiarization service for new customers
provides total peace of mind. We’ve got your back.
Fast Tent Purchase Options
Standard design & orange / grey colour
scheme with Njordair branding.
Typical lead time 7 days.
Custom design, colour or branding.
Typical lead time 8-12 weeks.
Related Products
Meters
Feet
-
SA-2 Inflatable Work Tent
-
Width, outside2 m (6’6″)
-
Width, inside1.5 m (4′11")
-
Length5 m (16′5")
-
Height, outside2.25 m (7’5″)
-
Height, inside2 m (6″6′)
-
-
SA-3 Inflatable Work Tent
-
Width, outside3 m (9'2")
-
Width, inside2.4 m (7'10")
-
Length3 (9'2")
-
Height, outside3 m (9’10”)
-
Height, inside2.7 m (8’10″)
-
-
SA-4 Inflatable Work Tent
-
Width, outside4 m (13′1")
-
Width, inside3.3 m (10′10")
-
Length5 m (16′5")
-
Height, outside3.15 m (10′4″)
-
Height, inside2.8 m (9'2"))
-
-
SA-6 Inflatable Work Tent
-
Width, outside6 m (19′8")
-
Width, inside5.4 m (17′9")
-
Length5m (16′)
-
Height, outside3.45 m (10’4”)
-
Height, inside2.85m (9'4")
-
-
SA-8 Inflatable Work Tent
-
Width, outside8 m (26′3")
-
Width, inside7 m (23′)
-
Length5 m (16′5")
-
Height, outside4.5 m (14’9”)
-
Height, inside4 m (13″1′)
-
-
SA-10 Inflatable Work Tent
-
Width, outside10 m (32′10")
-
Width, inside8.8 m (28′11")
-
Length5 m (16′5")
-
Height, outside5.5 m (18')
-
Height, inside4.9 m (16'1")
-
-
SA-12 Inflatable Work Tent
-
Width, outside12 m (39′4")
-
Width, inside10.4 m (34′1")
-
Length5 m (16′5")
-
Height, outside6.5 m (21’4”)
-
Height, inside5.9 m (8'6")
-
Fast Tent by Njordair.
Your own environment, anywhere.
